Charge Complex-T

Is a new super-fast charger from AE Charge Point.

old
price from

$22,000

New price
from
$19,000

Station specification

ccs type 1

CCS Type 1

1000V / 320kW / 240kW*

Power dividing

power
chademo

CHAdeMO

1000V / 80kW

* The specified power during the charging of one vehicle 320kW CCS Type 1. When charging two cars, the power is divided into 240kW for CCS Type 1 and 80kW for CHAdeMO.

Mounting:

Floor mounting (on a concrete base)

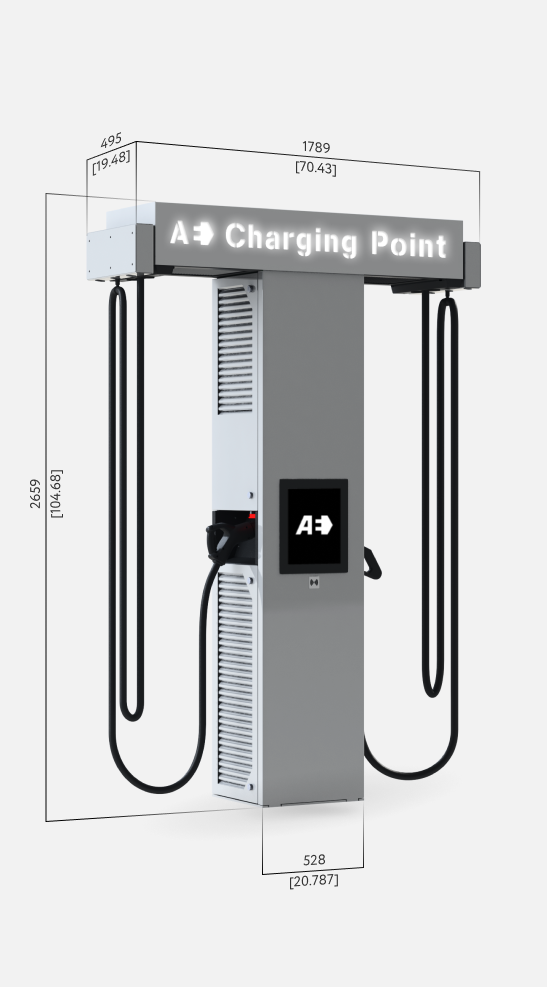

Charging station size (H×W×D):

104.68 x 70.43 x 19.48 inch / 2659 x 1789 x 495 mm

Length of cables:

From 21.33 ft / 6.5 m

Information display:

LCD display 17" in English / Italian / German / France / Spanish /
Ukrainian / Polish / Czech / Macedonian / russian

Enclosure:

Powder coated metal

AC Input - 400V / 575A (For powerful version)

DC Output - 1000V / 960А
AC Output - 400V / 125A

Methods of connecting the charging station to the billing system are available:

2G, 3G, 4G, LAN, Wi-Fi

OCPP protocol support:

1,6 JSON

Access and activation:

RFID cards (Mifare standard), local list memory - 10000+
cards Mobile application P&C by VIN code / credit card
terminal choose by owner

Payment by credit card:

Recommend payment terminal Ingenico iUC180 / iUC180B terminal.(Only for special orders)

Support for the following payment methods:

Online terminal, Visa, MasterСard, American Express,
Apple Pay, Google Pay

Protective equipment:

The charging station is equipped with a controller with an electronic RCD (30mA, 3 phases)
Enclosure protection class IP54
Mechanical protection class IK10

Operating temperature range:

From ‐35°C to +50°C / -31°F to +122°F.

Warranty

24 months

Charging station manufacturer:

Ukraine

Manufacturing components:

European Union, USA, Ukraine, Korea

CE, ISO, EAC etc. certified

The number of cars that can be charged at the same time:

2 cars

The configuration of the station can be changed for the customer's needs.

Protective equipment:

The charging station is equipped with a controller with an electronic RCD (30mA, 3 phases)
Enclosure protection class IP54
Mechanical protection class IK10

Operating temperature range:

From ‐35°C to +50°C / -31°F to +122°F.

Warranty

24 months

Support for the following payment methods :

Online terminal, Visa, MasterСard, American Express,
Apple Pay, Google Pay

station img

Complete installation and operating instructions

Check out the detailed technical characteristics and rules of operation of the charging station.

Download instruction >

Pay attention!

The charging station does not have a UL certificate! Certification of one charging station model is possible when ordering this model for the amount of $500,000 or more.

pay attention img

Take more, pay less!

Table of discounts

It's simple. Choose a station you like and select the number of stations you want to buy. After that, in the table, you will be able to see what discount you will get when you buy that many charging stations. And maybe you will want to buy more.

Number of charging stations

Charge Complex T-150

Charge Complex T-180

Charge Complex T-210

Charge Complex T-240

1-5 pc.

$19,000

No discount

$22,000

No discount

$25,000

No discount

$28,000

No discount

6-10 pc.

$18,100

-$900

$20,900

-$1 100

$23,800

-$1 200

$26,600

-$1 400

11-20 pc.

$17,500

-$1,500

$20,300

-$1,700

$23,000

-$2 000

$25,800

-$2,200

21-50 pc.

$17,100

-$1,900

$19,800

-$2,200

$22,500

-$2,500

$25,200

-$2,800

51-99 pc.

16,200 €

-$2,800

$18,700

-$3,300

$21,300

-$3,700

$23,800

-$4,200

100+ pc.

$15,200

-$3,800

$17,600

-$4,400

$20,000

-$5,000

$22,400

-$5,600

200+ pc.

$14,300

-$4,700

$16,500

-$5,500

$18,800

-$6,200

$21,000

-$7,000

Number of stations

1-5 pc.

6-10 pc.

11-20 pc.

21-50 pc.

51-99 pc.

100+ pc.

200+ pc.

Charge Complex T-150

$19,000

No discount

$18,100

-$900

$17,500

-$1,500

$17,100

-$1,900

$16,200

-$2,800

$15,200

-$3,800

$14,300

-$4,700

Charge Complex T-180

$22,000

No discount

$20,900

-1,100 €

$20,300

-$1,700

$19,800

-$2,200

$18,700

-$3,300

$17,600

-$4,400

$16,500

-$5,500

Number of stations

1-5 pc.

6-10 pc.

11-20pc.

21-50pc.

51-99pc.

100+pc.

200+pc.

Charge Complex T-210

$25,000

No discount

$23,800

-$1,200

$23,000

-$2,000

$22,500

-$2,500

$21,300

-$3,700

$20,000

-$5,000

$18,800

-$6,200

Charge Complex T-240

$28,000

No discount

$26,600

-$1,400

$25,800

-$2,200

$25,200

-$2,800

$23,800

-$4,200

$22,400

-$5,600

$21,000

-$7,000

Branding your charging station

We can brand the charging station according to your brand book. Painting the stations in your corporate colors, applying slogans, logos and other identities of your company will create a unique style of the charging station.

branding
branding

Charge Complex T-320

Will be soon...

Future specification

* The specified power during the charging of one vehicle 320kW CCS Type 2. When charging two cars, the power is divided into 240kW for CCS Type 2 and 80kW for CHAdeMO. ** Can be supplied in two variants 400V / 63A / 43 kW or 400V / 32A / 22kW.

ccs type 2

CCS Type 2

1000V / 320kW / 240kW*

+
chademo

CHAdeMO

1000V / 80kW

type 2 mennekes

Type 2 (Mennekes)

400V / 63А / 43kW**

+
type 2

Type 2 socket

400V / 63А / 43kW**

+
e-bike

E-bike socket

230V / 16А / 3.5kW

* The specified power during the charging of one vehicle 320kW CCS Type 1 or CCS Type 2 . When charging two cars, the power is divided into 240kW for CCS Type 1 or CCS Type 2 and 80kW for CHAdeMO or GB/T (DC).
