Dual Charger
Balance energy betwen plugs

Dual Station is a new generation up to 40kW charging stations from AE Charge Point.

dual-station

Station specification

j1772

J1772 (Type 1)

208/240V / 80А / 19kW

j1772

J1772 (Type 1)

208/240V / 80А / 19kW

j1772

E-bike socket

110V / 16А / 1.7kW

Mounting:

Wall-mounted
Pedestal (on a concrete base)

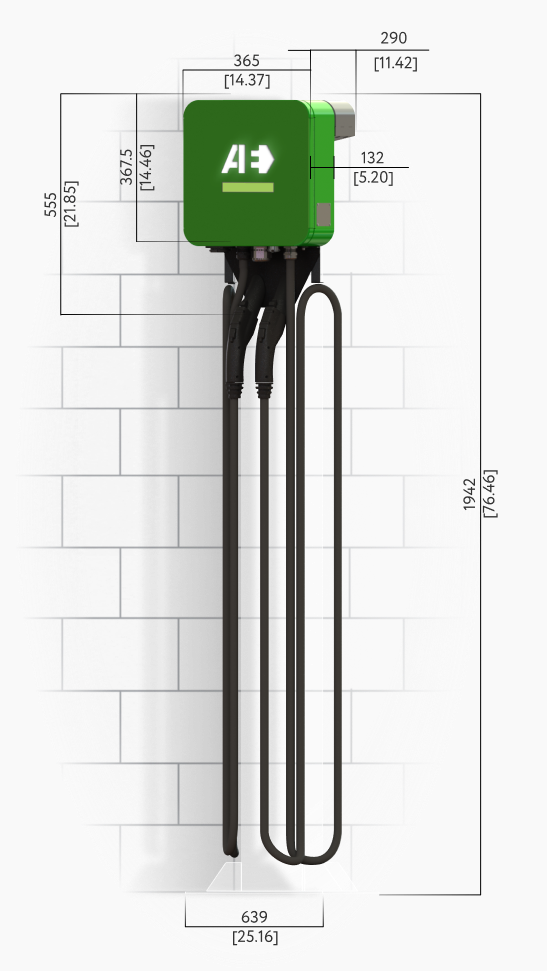

Charging station size:

Wall mounting:
21.85x14.37х5.20 inch / 555x365x132 mm
Floor mounting:
76.46x25.16x11.42 inch / 1942х639х290 mm

Length of cables:

From 21.33 ft / 6.5 m

Information display:

Two-line LED backlit
Supports ASCII

Enclosure:

Steel anti-corrosion coating

Input/Output 208/240v

Minimum - 12A
Maximum - 80A

OCPP protocol support:

1,6 JSON

Access and activation:

RFID cards (Mifare standard), local list memory - 10000+
cards Mobile application P&C by VIN code / credit card
terminal choosed by owner

Payment by credit card:

Recommend payment terminal Ingenico iUC180 / iUC180B terminal. (Only for special orders)

Support for the following payment methods:

Online terminal, Visa, MasterСard, American Express,
Apple Pay, Google Pay, and any other choosed by owner

Protective equipment:

The charging station is equipped with a controller with an
electronic RCD (20mA, 2 phases) and ground control
Enclosure protection class Type 3
Mechanical protection class IK10

Operating temperature range:

From -35°C to +50 °C / -31°F to +122°F

Warranty:

24 months

Charging station manufacturer:

Ukraine or USA

CE, ISO, EAC etc. certified

UL\CUL certified

(In progress)

The number of cars that can be charged at the same time:

2 cars(type1 j1772 ) + 1 Socket ( 110V 16A)
Tested with all EV cars and Plug-in Hybrid models

station img

Complete installation and operating instructions

Check out the detailed technical characteristics and rules of operation of the charging station.

Download instruction >

Branding your charging station

We can brand the charging station according to your brand book. Painting the stations in your corporate colors, applying slogans, logos and other identities of your company will create a unique style of the charging station.

branding
branding

Our partner Charger System Inc

For clients
modern design

Advanced approach to UX and UI

regular update

Regular updates, new features, etc.

For business
control

Manage your EV charging network

edit info

Edit station information and functions in your app

Visit web-site >

CS Cloud

Charger System Inc provides customers with a cloud-connected product that allows charging stations to operate on the same network.

app

Mobile Apps for clients

online support

Online support adn diagnostic

configuration

Online config and updates

manager

Transaction manager

bill

Billing system

Our certificates

Independent organizations worldwide confirm the highest quality of AE Charge Point stations.

We sell our products well in Europe, the USA, Israel, and Canada.
