Wall Charge Complex

Is a new fast charger from AE Charge Point.

From $ 7 000

wall-station

Station specification

Available now

ccs combo 1

CCS Type 1

500V / 120kW* / 60kW

Power dividing

green arrow
ccs combo 1

CHAdeMO

500V / 60kW

* The specified power during the charging of one vehicle 120kW CCS Type 1. When charging two cars, the power is divided into 60kW for CCS Type 1 and 60kW for CHAdeMO.

Coming soon

ccs combo 1

CCS Type 1

1000V / 160kW* / 80kW

Power dividing

green arrow
ccs combo 1

CHAdeMO

1000V / 80kW

* The specified power during the charging of one vehicle 160kW CCS Type 1. When charging two cars, the power is divided into 80kW for CCS Type 1 and 80kW for CHAdeMO.

Mounting:

Wall-mounted (wall)
Pedestal (on a concrete base)

Charging station size (H×W×D):

Wall mounting:
41.93 x 41.8 5x 12.24 inch / 1065 × 1063 × 311 mm
Floor mounting:
83.70 x 41.85 x 15.31 inch / 2126 × 1063 × 389 mm

Length of cables:

From 21.33 ft / 6.5 m

Information display:

LCD screen 7” in English / Italian / German / France / Spanish /
Ukrainian / Polish / Czech / Macedonian / russian

Enclosure:

Metal galvanized and painted

AC Input - 480V:

Minimum - 30A (Adjustable by software)
Maximum - 333A

DC Output - 1000V:

Minimum - 1A
Maximum - 450A

Methods of connecting the charging station to the billing system are available:

2G, 3G, 4G, LAN, Wi-Fi

OCPP protocol support:

1,6 JSON

Access and activation:

RFID cards (Mifare standard), local list memory - 10000+ cards Mobile application P&C by VIN code / credit card terminal choosed by owner

Payment by credit card:

Recommend payment terminal Ingenico iUC180 / iUC180B terminal. (Only for special orders)

Support for the following payment methods:

Online terminal, Visa, MasterСard, American Express, Apple
Pay, Google Pay

Protective equipment:

The charging station is equipped with a controller with an
electronic RCD (US - 20mA, 2 phases)
Enclosure protection class Type 3
Mechanical protection class IK10

Operating temperature range:

From ‐35°C to +50°C / -31°F to +122°F

Warranty:

24 months

Charging station manufacturer:

USA or Ukraine

Manufacturing components:

European Union, USA, Ukraine, Korea

CE, ISO, EAC etc. certified

UL\cUL certified

(UL accomplished pending payment)

The number of cars that can be charged at the same time:

2 cars

The configuration of the station can be changed for the customer's needs.

Warranty:

24 months

Charging station manufacturer:

USA or Ukraine

Manufacturing components:

European Union, USA, Ukraine, Korea

CE, ISO, EAC and etc. certified

The number of cars that can be charged at the same time:

2 cars

The configuration of the station can be changed for the customer's needs.

station img

Complete installation and operating instructions

Check out the detailed technical characteristics and rules of operation of the charging station.

Download instruction >

Pay attention!

The charging station does not have a UL certificate! Certification of one charging station model is possible when ordering this model for the amount of $500,000 or more.

pay attention img

Take more, pay less!

Table of discounts

It's simple. Choose a station you like and select the number of stations you want to buy. After that, in the table, you will be able to see what discount you will get when you buy that many charging stations. And maybe you will want to buy more.

Number of charging stations

Wall Complex - 20kW

Wall Complex - 30kW

Wall Complex - 40kW

Wall Complex - 60kW

Wall Complex - 90kW

Wall Complex - 120kW

1-5 pc.

$7,000

No discount

7,500 €

No discount

$8,000

No discount

$9,500

No discount

$11,500

No discount

$13,500

No discount

6-10 pc.

$6,800

-$200

$7,300

-$200

$7,800

-$200

$9,200

-$300

$11,100

-$400

$13,000

-$500

11-20 pc.

6,600 €

-$400

$7,100

-$400

$7,600

-$400

$8,900

-$600

$10,700

-$800

$12,500

-$1 000

21-50 pc.

$6,300

-$700

$6,800

-$700

$7,300

-$700

$8,500

-$1,000

$10,200

-$1,300

$11,900

-$1,600

51-99 pc.

$5,900

-$1 000

$6,400

-$1 100

$6,900

-$1,100

$8,000

-$1,500

$9,600

-$1 900

$11,200

-$2,300

100+ pc.

$5,400

-$1,600

$5,900

-$1,600

$6,400

-$1,600

$7,400

-$2,100

$8,900

-$2,600

$10,400

-$3,100

200+ pc.

$4,900

-$2,100

$5,300

-$2,200

$5,800

-$2,200

$6,700

-$2,800

$8,100

-$3,400

$9,500

-$4,000

Number of stations

1-5 pc.

6-10 pc.

11-20 pc.

21-50 pc.

51-99 pc.

100+ pc.

200+ pc.

Wall Complex - 20kW

$7 000

No discount

$6 800

-$200

$6 600

-$400

$6 300

-$700

$5 900

-$1 000

$5 400

-$1 600

$4 900

-$2 100

Charge Complex Y 320

$7,500

No discount

$7,300

-$200

$7,100

-$400

$6,800

-$700

$6,400

-$1,100

$5,900

-$1,600

$5,300

-$2,200

Number of stations

1-5 pc.

6-10 pc.

11-20pc.

21-50pc.

51-99pc.

100+pc.

200+pc.

Wall Complex - 40kW

$8,000

No discount

$7,800

-$200

$7,600

-$400

$7,300

-$700

$6,900

-$1,100

$6 400

-$1 600

$5,800

-$2,200

Wall Complex - 60kW

$9,500

No discount

$9,200

-$300

$8,900

-$600

$8,500

-$1,000

$8,000

-$1,500

$7,400

-$2,100

$6,700

-$2,800

Number of stations

1-5 pc.

6-10 pc.

11-20pc.

21-50pc.

51-99pc.

100+pc.

200+pc.

Wall Complex - 90kW

$11,500

No discount

$11,100

-$400

$10,700

-$800

$10,200

-$1 300

$9,600

-$1,900

$8,900

-$2,600

$8,100

-$3,400

Wall Complex - 120kW

$13,500

No discount

$13,000

-$500

$12,500

-$1,000

$11,900

-$1,600

$11,200

-$2,300

$10,400

-$3,100

$9,500

-$4,000

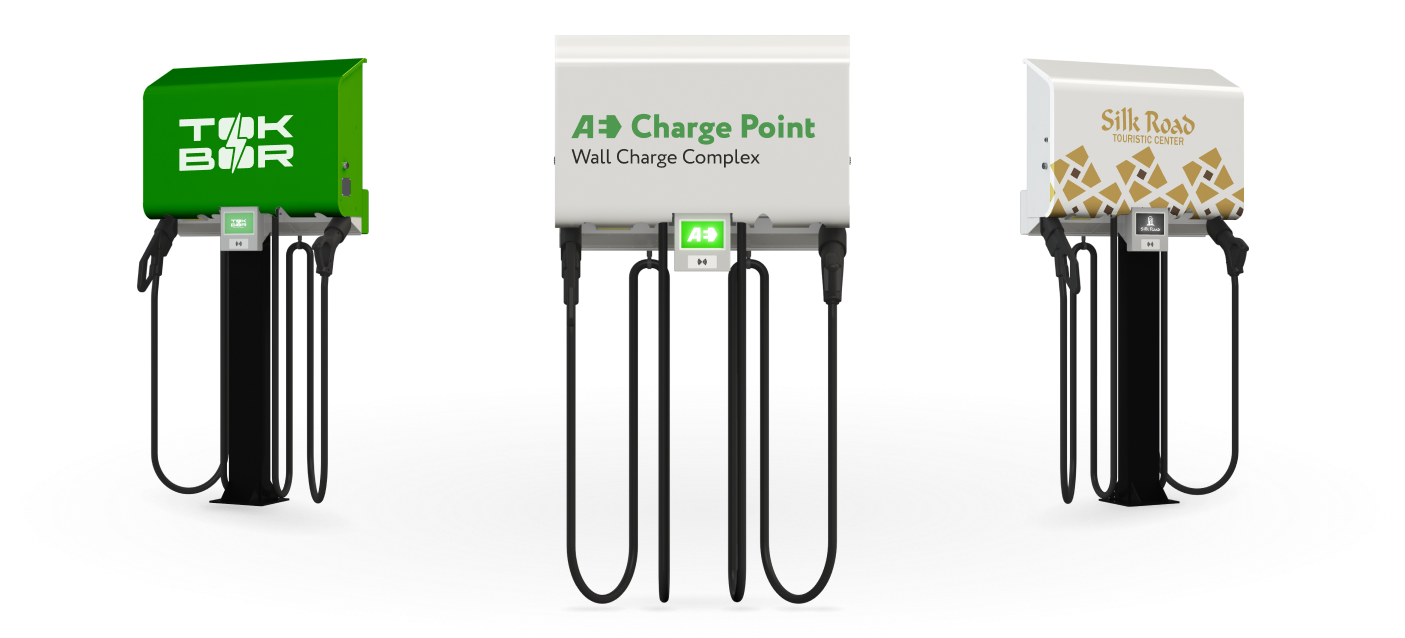

Branding your charging station

We can brand the charging station according to your brand book. Painting the stations in your corporate colors, applying slogans, logos and other identities of your company will create a unique style of the charging station.

branding
branding

Our partner Charger System Inc

For clients
modern design

Advanced approach to UX and UI

regular update

Regular updates, new features, etc.

For business
control

Manage your EV charging network

edit info

Edit station information and functions in your app

Visit web-site >

CS Cloud

Charger System Inc provides customers with a cloud-connected product that allows charging stations to operate on the same network.

app

Mobile Apps for clients

online support

Online support and diagnostic

configuration

Online config and updates

manager

Transaction manager

bill

Billing system

Our certificates

Independent organizations worldwide confirm the highest quality of AE Charge Point stations.

We sell our products well in Europe, the USA, Israel, and Canada.
